The F1 Fleet Management System features an internal 2G or 3G modem with support for an external LTE modem as well as for an Iridium satellite network fallback option. WiFi hotspot is also available as an option. The F1 FMS includes an on-board CAN Bus J1939 transceiver and supports OBD II via external transceiver to provide a robust set of fleet management and driver behavior events and alerts.

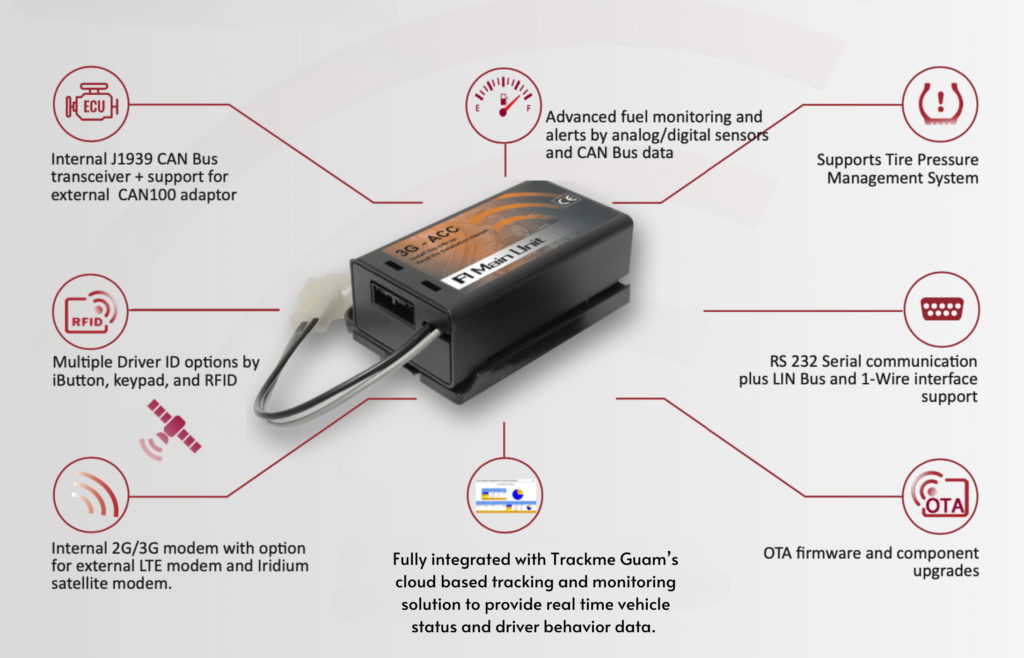

Main Features :
- Internal 2.5G, 3G GSM/GPRS, and external 4G LTE communications options. Supports optional Iridium satellite network modem
- On-board functions include CAN Bus transceiver, immobilizer, buzzer, and accelerometer.
- F1 includes LIN Bus and RS232 interfaces to support a variety of driver ID types including magnetic card reader, RFID, and keypad with private/business trip type
- Supports Dallas 1-wire protocol
- Fuel Level and alerts by CAN Bus, analog or digital fuel sensors for one or two fuel tanks
- Fully integrated with WorldFleetLog to generate hundreds of reports
Technical Specifications
